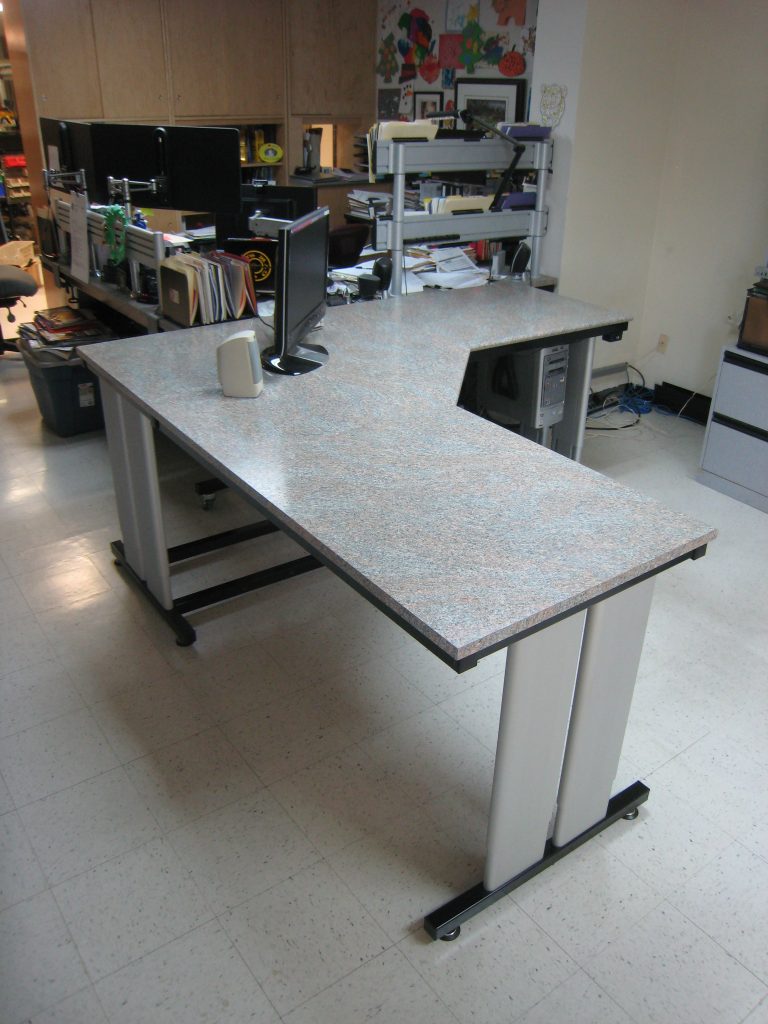

Table Model Li-107P-CNR45 – L-Shaped Adjustable Height i-Frame Table with Chamfered Front Corner

Standard Table Features…

• Ergonomic ADA Corner Unit Table with Height Adjustability (Options)
  • Hydraulic-Assisted Height Adjustment w/ Electric Motor or Hand Crank
    • 500 pound capacity – 2 Leg Unit (Less Weight of Top) – 1000 pound capacity available as option
    • Switch for Electric Motor Unit can be positioned anywhere on the unit…
    • Hand Crank is mounted below work surface (Front or Side)
  • Manually-Adjusted Height Option w/ Leg Pins – See Table Model A-109P-PIN…
• Other Styles Available – See Our Corner Table Units page…
  • Also See Our Adjustable Height Tables  page…
• Standard Sizes:
  • We are the manufacturer…
  • Feel free to specify your custom dimension requirements below or choose from the following…
  • “A1″ – 36″, 42″, 48” Overall Length (Left Wing)
    • Minimum Top/Unit Widths (Required to Accommodate Hydraulic System):
      • Electric Motor Hydraulic System:
        • 12″ Lift – 34″ Min. Width
      • Manual Crank Hydraulic System (Min Depth if Hand Crank located at front of Unit):
        • 12″ Lift – 22″ Min. Width or Depth
  • “A2” – (Right Wing Overall Length) Same Options as “A1″…
  • “B1″ – 30″ & 36” Depth of Left Wing (Front-to-Back)
  • “B2″ – 30″ & 36” Depth of Right Wing (Front-to-Back)
  • “C” – 30″ Standard Height w/ Levelers
    • 25″ Lowest Height (Optional $$)
    • Casters add 2.5″
• Durable Steel Top Frame with Telescoping Aluminum Legs & Steel Base Legs
  • Welded Tubular Steel Frame Connections for Non-Adjustable Components
• Adjustable Leveling Feet.  Casters available as option – See below…
• See our Cleanroom Workbench Section for Electropolished Stainless Steel Tables…
• Many Top Options to Choose From, Including Plastic Laminate, Chemical Resistant, ESD / Static-Control, Solid Surface, Solid Wood (Butcher Block), Stainless Steel, and More…

This model is part of the RDM Industrial Workbenches standard models.
