FACTORY – DIRECT / WORKBENCH MANUFACTURER

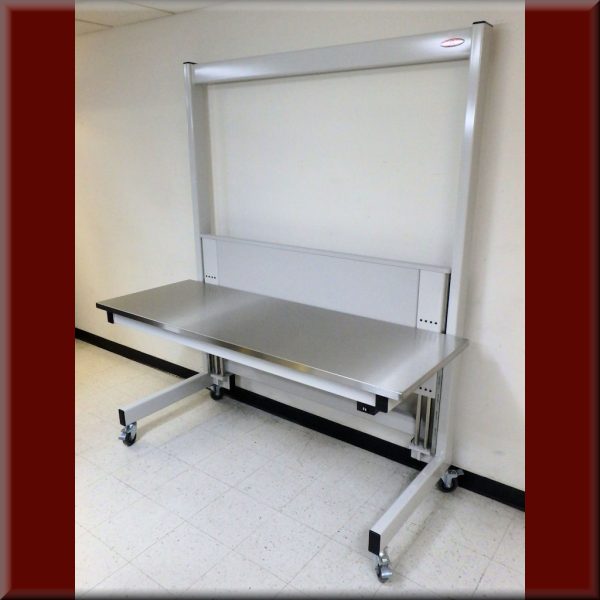

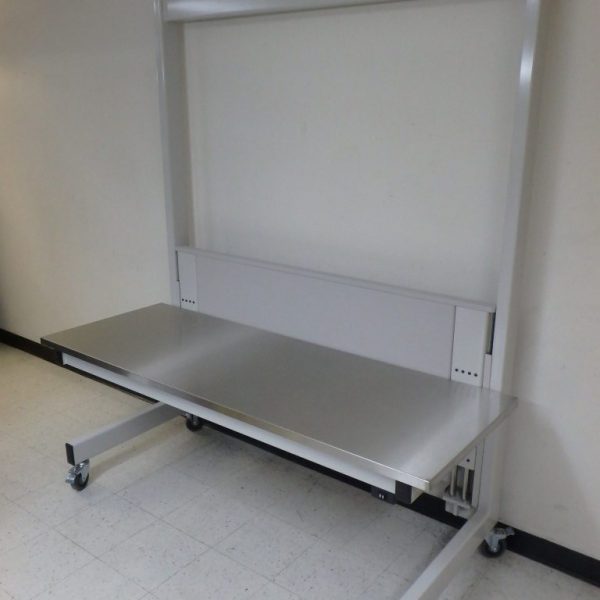

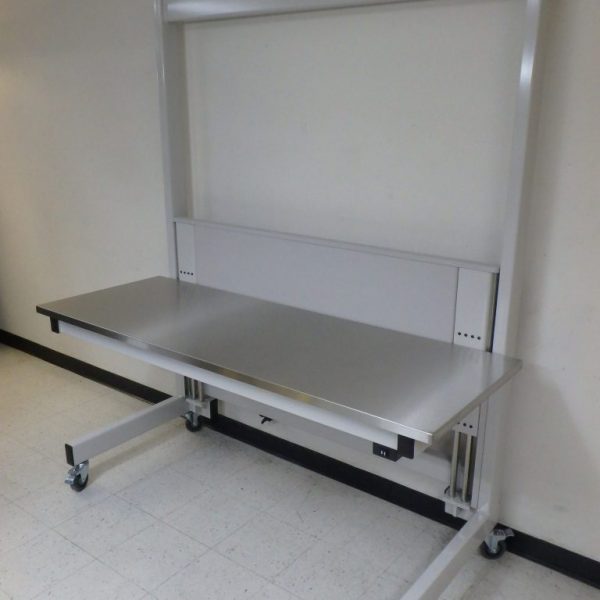

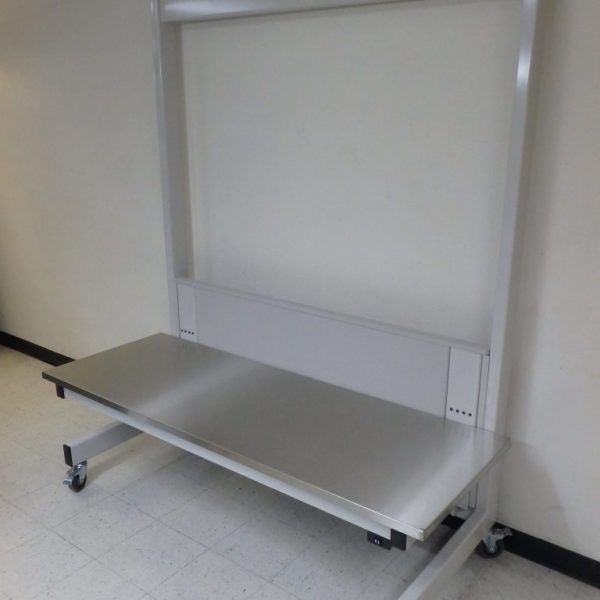

Table Model ES-107P – Low-Start Cantilevered Lift Workstation
– Ergonomic Adjustable Height Table
- Durable Steel Frame Construction w/ Lower Crossmember (Can be used as a footrest)
- Welded Tubular Steel Frame Connections
- Adjustable Leveling Feet. Casters available as option (Adds 3″ to Overall Height w/ Standard Casters)
- See our Cleanroom Workbench Section for Electropolished Stainless Steel Tables…
- Many Top Options to Choose From, Including Plastic Laminate, Chemical Resistant, ESD / Static-Control, Solid Surface, Solid Wood (Butcher Block), Stainless Steel, and More.
This model is part of the RDM Industrial Workbenches standard models.
Low-Start Lift Table Features…
- DELUXE Ergonomic Low-Start Table – Height Adjustable with Hydraulic Lift System
- Hydraulic Height Adjustment w/ Electric Motor or Hand Crank
- 1,000 pound capacity lift system – 4 Leg Unit (Less Weight of Unit)
- Optional 1,500 pound capacity lift system available w/ electric motor – 4 & 6 Leg Unit (Less Weight of Unit)
- Optional 2,000 & 3,000 pound capacity lift system options available w/ electric motor – 8 Leg Unit (Less Weight of Unit)
- Hand Crank is mounted below work surface (Front or Side)
- Switch for Optional Electric Motor Unit can be positioned anywhere on the unit…
- UL Approved – Lift Systems with Electric Motors are UL listed (Required for Units w/ Electrical Components).
- CSA approved – Lift Systems with Electric Motors are CSA Certified (Required for Units w/ Electrical Components).
- – Non-Toxic, Food-Grade Hydraulic Fluid for above systems…
- 1,000 pound capacity lift system – 4 Leg Unit (Less Weight of Unit)
- Hydraulic Height Adjustment w/ Electric Motor or Hand Crank
- Other Styles Available – See Our Adjustable Height Tables page…
- Manually-Adjusted Height Option w/ Leg Pins – See Table Model A-109P-PIN
- Also See Our Laboratory Tables page…
- Standard Sizes:
- We are the manufacturer…
- Feel free to specify your custom dimension requirements below or choose from the following…
- “A” – Width (Right-to-Left) 30″, 36″, 48″, 60″, 72″, & 96″
- Minimum Top/Unit Widths (to Accommodate Hydraulic System):
- Electric Motor Hydraulic System:
- 6″ Lift – 34″ Min. Width
- 8″ Lift – 36″ Min. Width
- 10″ Lift – 38″ Min. Width
- 12″ Lift – 40″ Min. Width
- 16″ Lift – 44″ Min. Width
- Manual Crank Hydraulic System (Min Depth if Hand Crank located at front of Unit):
- Hand Crank folds beneath work surface…
- 6″ Lift – 20″ Min. Width or Depth
- 8″ Lift – 22″ Min. Width or Depth
- 10″ Lift – 25″ Min. Width or Depth
- 12″ Lift – 27″ Min. Width or Depth
- 16″ Lift – 31″ Min. Width or Depth
- Electric Motor Hydraulic System:
- Minimum Top/Unit Widths (to Accommodate Hydraulic System):
- “B” – Depth (Front-to-Back) 24″, 30″, 36″, & 48″ (Top Depth, Frame Adds Appx. 4.5″)
- “C” – Minimum Starting Height – 10.5″
