FACTORY – DIRECT / PANEL RACK CART MANUFACTURER

Cart Model MC-PR-110HP – Horizontal Panel Rack Carts…

Name: Cart Model <span style="color: #9900ff"><strong>MC-PR-110HP</strong></span> - Horizontal Panel Rack Carts...
SKU: MC-PR-110P
Price: 2795.00 USD
Availability: InStock

– Horizontal Panel Storage / Drying Rack…

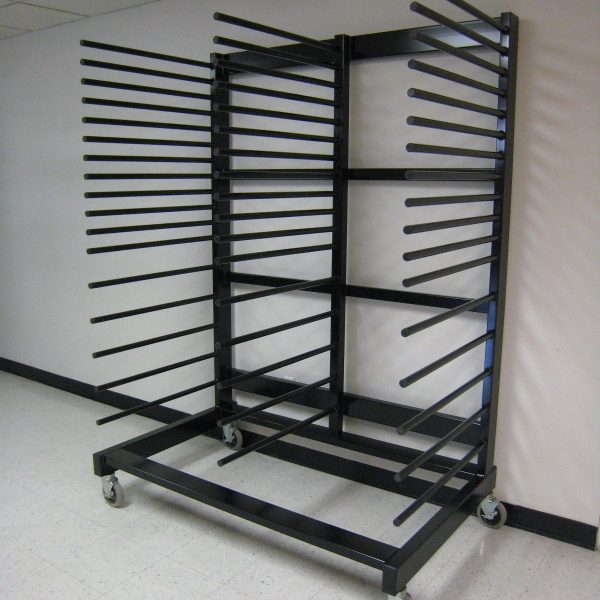

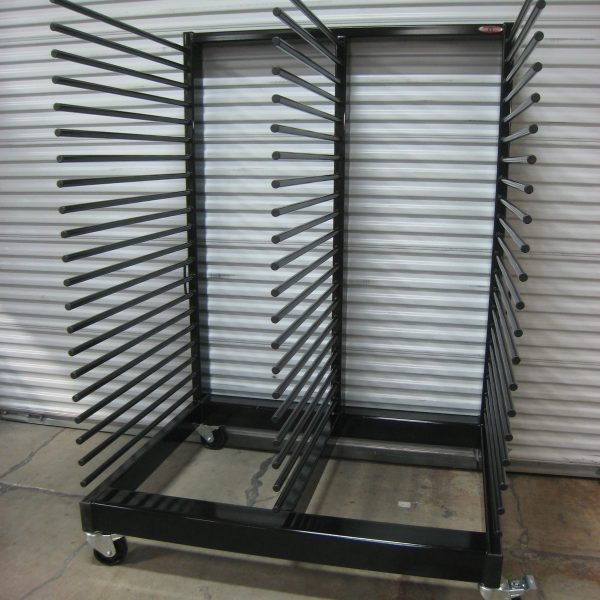

Take a Look at Our Sample Unit:

Sample Unit with Dimension References

Standard Cart Features…

Horizontal Panel Rack Carts can be designed to carry Light to Heavy Loads.
- Optional Dual-Size Vertical Clearances to handle two panel thicknesses.
- Great for use as a dry rack, or storage cart for your flat panel inventory…
Standard Sizes:
- We are the manufacturer – Feel free to specify your custom dimension requirements
  above or choose from the following…
- “A” – Overall Width 48″, 60″ & 72″ Width (Right-to-Left) …or Custom
- “B” – Overall Depth – Equal to “D” Below PLUS (+) 5″
- “C” – Overall Height – Typically 79″ to fit through standard doorways
- “D” – Arm Length 18″, 24″, 30″, 36″ & “48” Depth (Front-to-Back) …or Custom
- “E1” & “E2” – Clear Height Spacing of Arms
Welded Tubular Steel Frame Connections
Industrial-Duty Casters (Wheels for Mobility)
See our Cleanroom Carts Section for Electropolished Stainless Steel Carts…

This model is part of the RDM Industrial Carts standard models.

FILL INFORMATION BELOW & CLICK "…CART" BUTTON AT BOTTOM

NOTE: * = Required

+-
STEP 1 - Enter Required Information below

Dimensions (INCHES):

A (Overall Width):*

Enter Preferred Overall Width of Cart...

B (Overall Depth = D Arm Depth + 5") - (Auto-Calc):

NOTE: Above Value is Automatically Calculated
This Field is Automatically calculated, based on Arm Length value entered at D2.

C (Overall Height):*

- 79" Standard Overall Height - 87" Max. Height for Delivery Upright on Pallet

D1 (Your Panel Weight):*

Enter the Weight (in lbs) of Your Heaviest Panel (Max. Weight) that will be placed across one set of arms. 1"dia. Standard Arms at 30"max. length can carry 100 lbs. in set of three - See "F (Column Quantity):" below...

D2 (Arm Length):*

Hidden

D (1"Dia. Arms) - (Auto-Calc):

NOTE: Above Value is Automatically Calculated

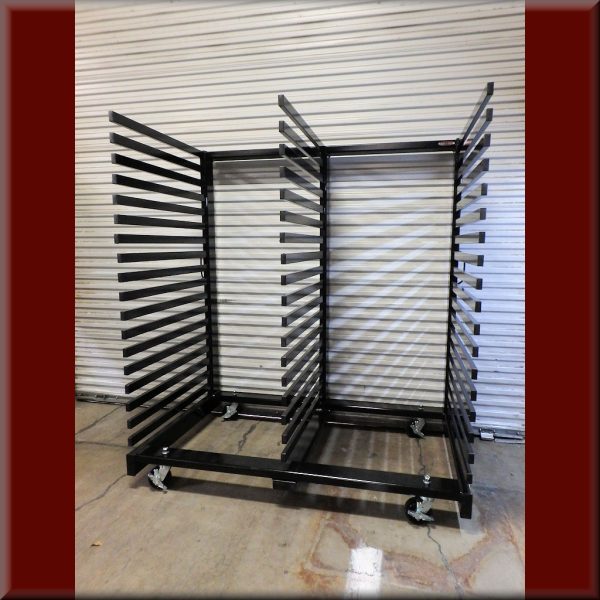

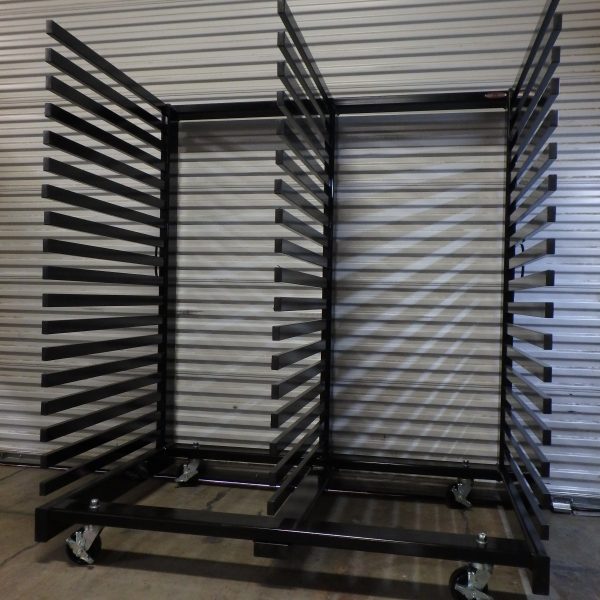

1"dia. Round Tube is Standard up to 30" in length or 100 lbs max. load. 1x2 Tube Steel used if Arm Depth/Length length is greater than 30" or load is greater than 100 lbs for single panel. 1" Dia. Round Tubing Will be used for Arms

D3 (Arm Size) - (Auto-Calc):

E1 - Input Vertical Storage Needed

E1T (Total Arms or... Total Arms Lower Section Only)

- Enter Total Panel Storage Spaces Needed... - Enter total number if all same size - OR... Enter total number of panels for lower section. - Adjust Overall Height "C" if more Arms / Spacing Needed...

E1 (Arm Space 1) - (Auto-Calc):

NOTE: Above Value is Automatically Calculated
- Vertical Clearance (Inches) between Arms...

F (Column Quantity):*

- Enter Total Arms Left-2-Right (3 is Standard) ...For Panel Support

E2 (OPTIONAL) - Input Only if Second Size Needed at Upper Half

E2 (Second Size Upper Storage):

Yes - Second Size Needed
No Second Size Needed

- Second Size Needed (Upper Section) ?? - If Second Size Needed, Enter the Size of Vertical Clearance Needed Next...

Hidden

E22N (Second Upper Shelf Validation):

E2 (Arm Space 2) - (Auto-Calc):

NOTE: Above Value is Automatically Calculated
- Vertical Clearance between Upper Arms

Environment

Environment:

Frame Options:*

See Samples

Quantity Req'd:*

+-
STEP 2 - Optional Accessories

+-
STEP 3 - Additional Comments

Cart Model MC-PR-110HP – Horizontal Panel Rack Carts…

– Horizontal Panel Storage / Drying Rack…

Standard Cart Features…

+-

STEP 1 - Enter Required Information below

+-

STEP 2 - Optional Accessories

ESD Static Control Cart Options:

+-

STEP 3 - Additional Comments
